2U 14/16 Slots 19 inch Rack Mount Chassis,Double Power Supply Fiber Optical Media Converter Chassis

FOB Reference Price:Get Latest Price
$110.00 - $150.00 / Piece | 10 Piece/Pieces (Min. Order)
Lead Time:
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 Negotiable
Customization:
Customized logo (Min. Order: 1000 Pieces)
Customized packaging (Min. Order: 1000 Pieces)

More

Graphic customization (Min. Order: 1000 Pieces) Less
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
China
Brand Name:
Powerlink
Model Number:
P48
Product name:
Double Power Supply Fiber Optical Media Converter Chassis
Application:
FTTH FTTB FTTX Network
Type:
Network Communications Equipment
Color:
Balck
Certification:
CE RoHS FCC
Wavelength:
1310/1550nm
Fiber Type:
Single Fiber Single Mode
Warranty:
1 Year
Dimensions:
2U 19"
Material:
Steel
Supply Ability
Supply Ability:
150 Piece/Pieces per Week
Packaging & Delivery
Port
Shenzhen
Picture Example:
package-img
Lead Time :
Quantity(Pieces) 1 - 50 >50
Est. Time(days) 10 To be negotiated

Powerlink -  .jpg

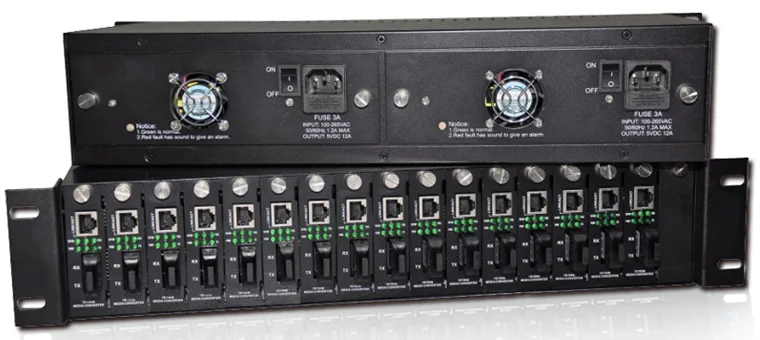

Double Power Supply Fiber Optical Media Converter Chassis/ Rack Mount




Introduction

Rack-mounted chassis is a centralized and economical equipment of gather

Ethernet media converter together. It covers two styles, 14 slots and 16 slots,

mostly used in plant room with centralized dual power supply and automatic

switch. Normal size is 2U, but 14 slots kind is for standalone device and 16 slots

kind is for card style.



Features

* Main and vice power equipment ensure system work smoothly.

* Function cards supports hot-plugging and each card realizes its corresponding

function independently.

* Double power panel slot supports two power supply units backup for each other.

* It would enhance the reliability of the rack.

* Supports 220V/110V AC switch mode power supply (SMPS) design.

* Power supply and other parameter state indicator LED can monitor the

operation condition of system.

* Up to14 or 16 available card type media converter module slots, 14 standalone

media converter slots.

* With stable performance, large capacity of power supply, and easy for

management and maintenance.

* All of the modules installed in the chassis are hot-swap, which makes it

unnecessary to power-down the chassis when replacing modules.

* Support telecommunication operation requirement completely.



Technology Specification

Structure : 2U Rack

Ripple wave : ≤20mv

Power input : AC85~265V 50/60HZ

Power output : DC5V 16A

Power adapter: single power supply or dual power supply

Power: 95W

Operating Temperature : -10~55℃

Operating Humidity : 5%~95%

Storage Temperature : -40~70℃

Storage Humidity : 5%~95% no condensing

Dimension: 490mm x 230mm x 90mm for Rack



Brand NamePowerlink
Model NumberP48
Fiber TypeSingle Mode
Item Length1m
Size52*38*15CM
CompatibleCisco
CompatibleJuniper
Fiber ConnectorSC
Connector TypeHybrid
Fiber TypeSM or MM
FactoryYes
OEMYes
Place of originShenzhen
Transmission Distance550-100KM
Power SupplyExternal or Internal
Power AdaptorAmerican, Euro, UK.
wavelength1310nm, 1550nm
